GL-AU01-BAT20W2F

  • GLAU SERIES

  • HIGH EFFICIENCY NICHA SMD3030 LED CHIPS
  • HIGH LUMEN OUTPUT 130LM/W
  • MEAN WELL HBG SERIES DRIVER
  • DIE CAST MAGNESIUM ALLOY LAMP BODY
  • OPTIMISED SENSOR (OPTIONAL)
Download Data Sheet


Data Sheet

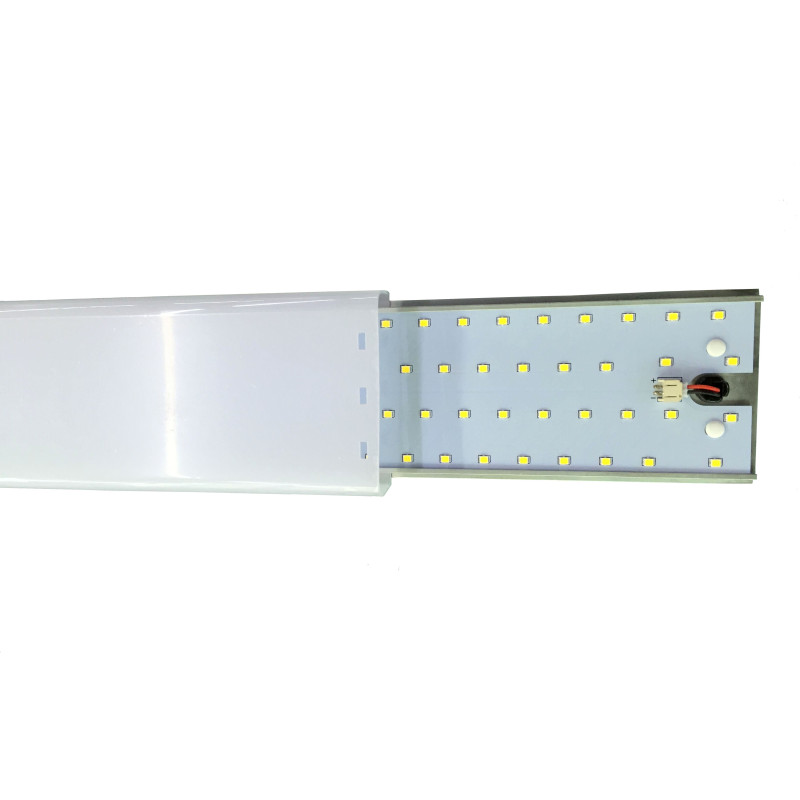

LED Chips SMD 2835
Power 20W
Input Voltage 220-240VAC, 50-60Hz
Lumens 2,600lm±5%
Power Factor ＞0.90
CRI ＞80
Color Temperature 3000K~6000K
Beam Angle 120°
Dimensions Weight 600*80*65mm / 1.15 Kgs
Cut Out N/A
IP Rating IP44
Operating Temperature - 25°C ~ + 45°C
Life Time 50,000 Hours
Warranty 5 years
Others Additional Function: Dimmable, Microwave Sensor, Emergency Lighting.

PRODUCT APPROVALS & TEST  REPORTS

SAA / C-TICK   VEET /  IPART   EMC   LCP   LM-79   LM-80   TM-21
