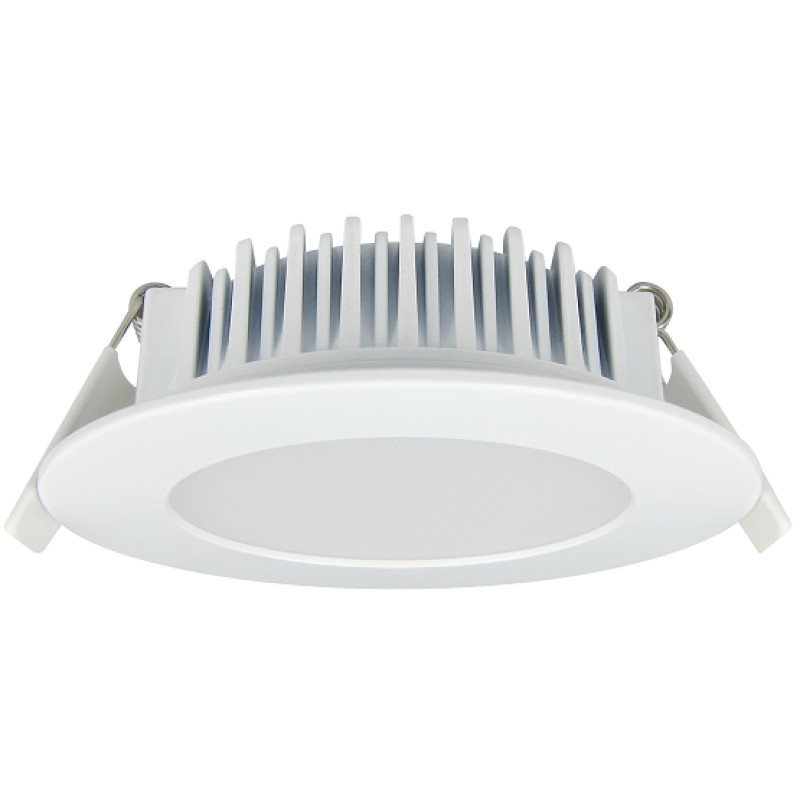

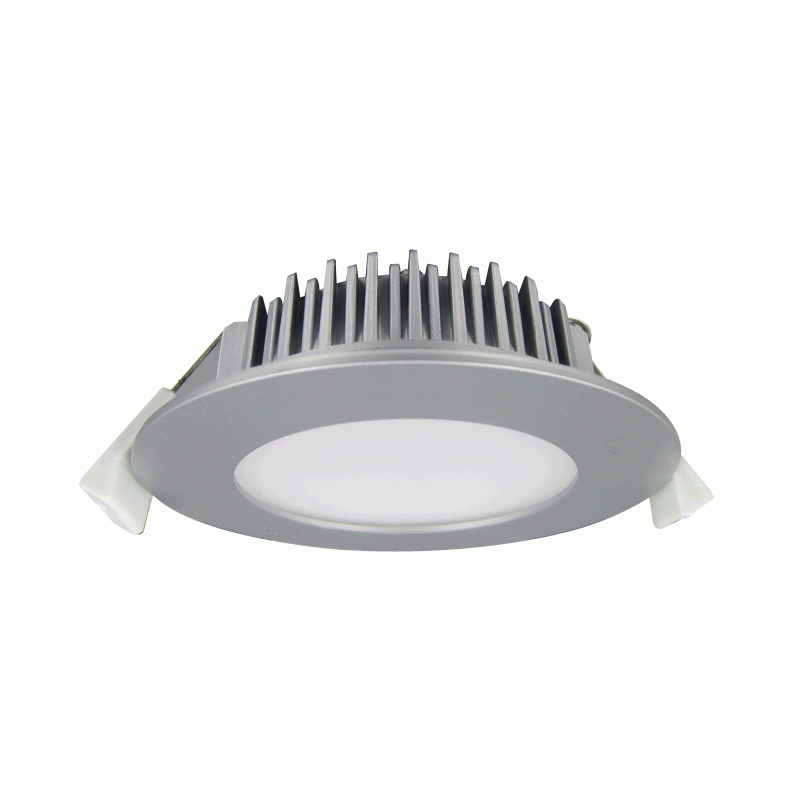

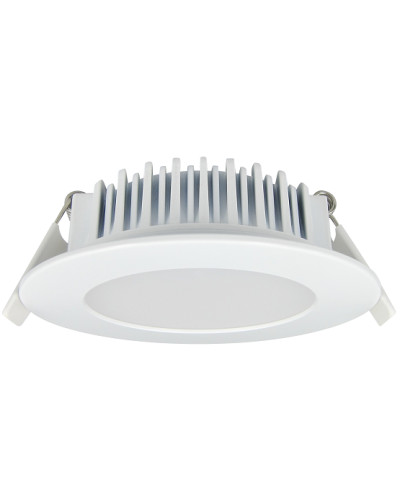

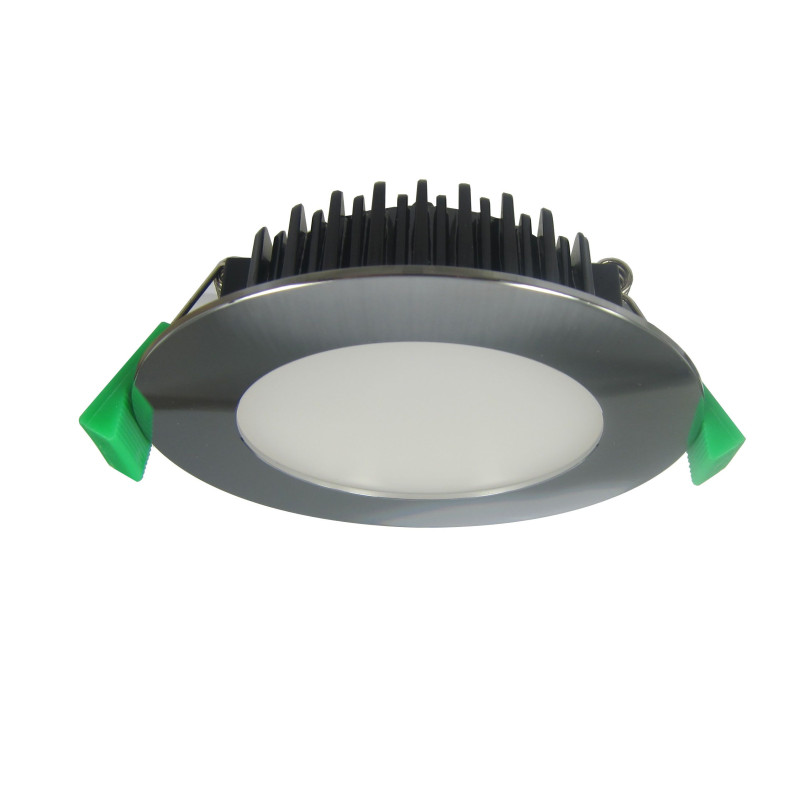

GL-AU09-DL10W
- GLAU SERIES
- DIE-CAST ALUMINIUM LAMP BODY
- HIGH EFFICIENCY SMD LED CHIPS
- IP44 WEATHERPROOF
- IC ABUTTED & COVERED
- COMPATIBLE WITH C-BUS UNIVERSAL, LEADING AND TRAILING EDGE DIMMERS
- PRE-WIRED WITH FLEX & PLUG
| Data Sheet | |
| LED Chips | SMD 2835 |
| Power | 10W |
| Input Voltage | 175-265VAC, 50-60Hz |
| Lumens | 750lm±5% |
| Power Factor | ＞0.90 |
| CRI | ＞82 |
| Color Temperature | 3000K~6000K |
| Beam Angle | 90° |
| Dimensions | Φ108*32mm |
| Cut Out | Φ90mm |
| IC Rating | IC-F |
| IP Rating | IP44 |
| Operating Temperature | - 25°C ~ + 45°C |
| Life Time | 50,000 Hours |
| Warranty | 5 Years |
PRODUCT APPROVALS & TEST REPORTS
SAA / C-TICK VEET / IPART EMC LCP LM-79 LM-80 TM-21
