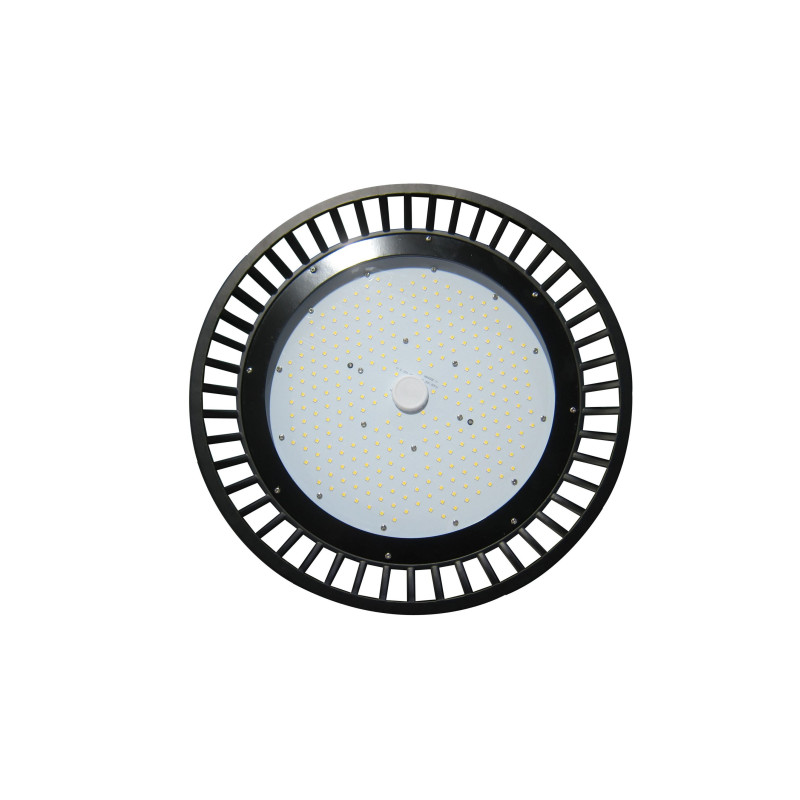

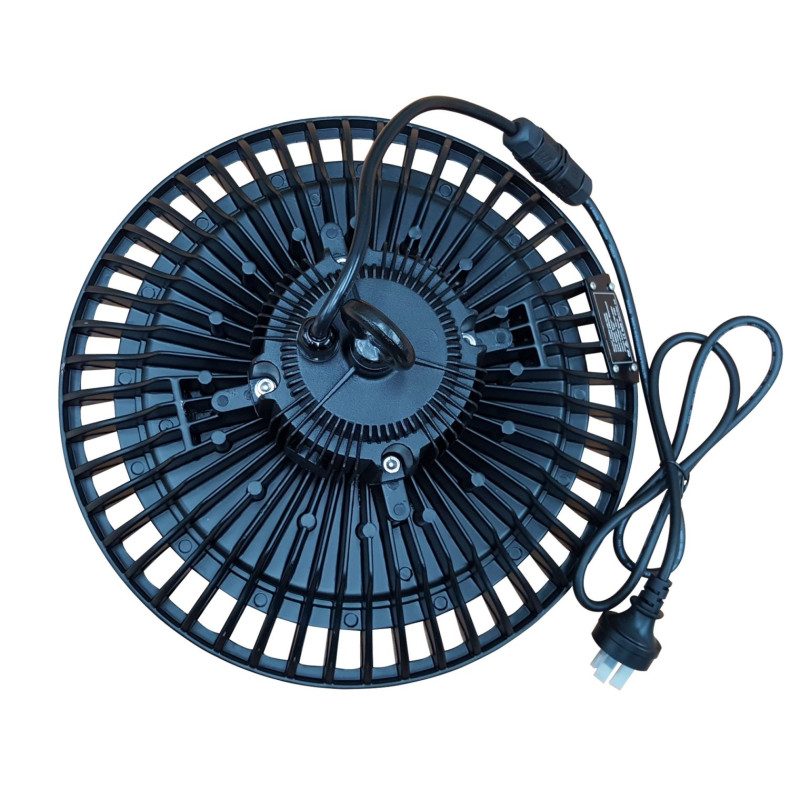

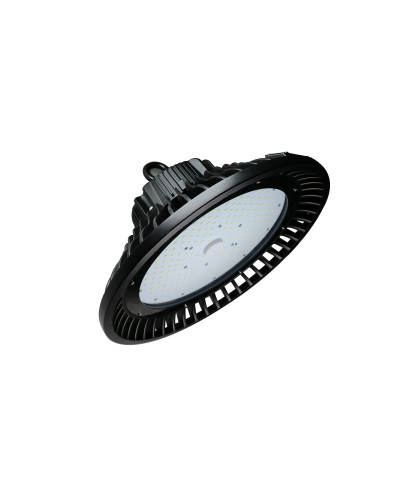

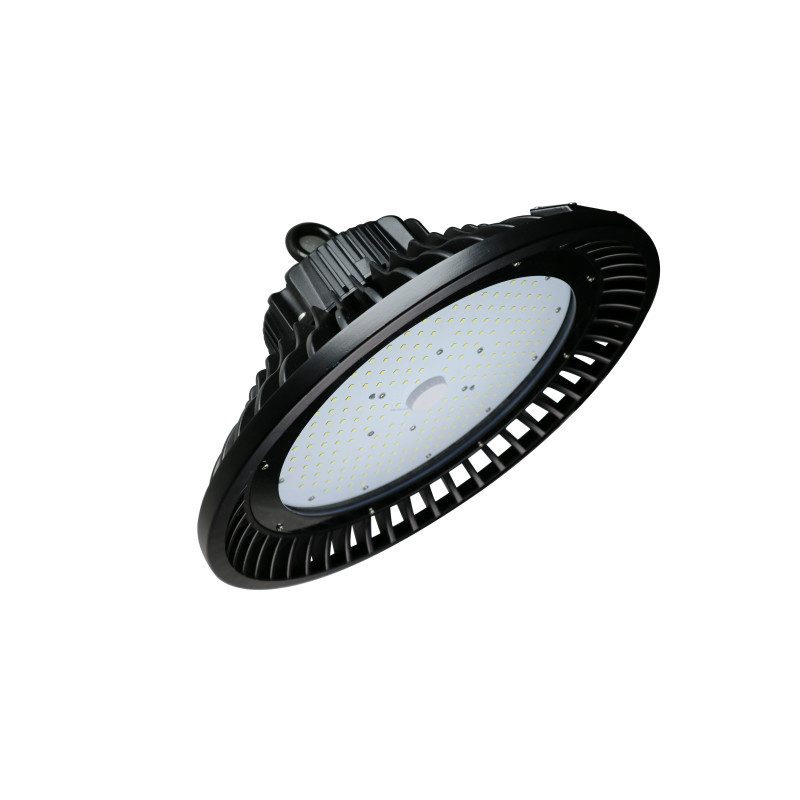

GL-AU02-HB100W

  • GLAU SERIES

  • HIGH EFFICIENCY NICHA SMD3030 LED CHIPS
  • HIGH LUMEN OUTPUT 130LM/W
  • MEAN WELL HBG SERIES DRIVER
  • DIE CAST MAGNESIUM ALLOY LAMP BODY
  • OPTIMISED SENSOR (OPTIONAL)
Download Data Sheet


Data Sheet
LED Chips Philips
Driver Mean well
Power 100W
Input Voltage 100-240VAC, 50-60Hz
Lumens 13,000lm±5%
Power Factor ＞0.95
CRI ＞70
Color Temperature 5000K~6500K
Beam Angle 120°, 45°/ 60°optional
Dimensions Weight 366*366*223mm, 5.0 Kgs
Cut Out N/A
IP Rating IP65
Operating Temperature - 30°C ~ +50°C
Life Time 50,000 Hours
Warranty 5 years
Others Additional Function: Microwave Sensor, Daylight Sensor, 1~10V Dimmable

PRODUCT APPROVALS & TEST  REPORTS

SAA / C-TICK   VEET /  IPART   EMC   LCP   LM-79   LM-80   TM-21
